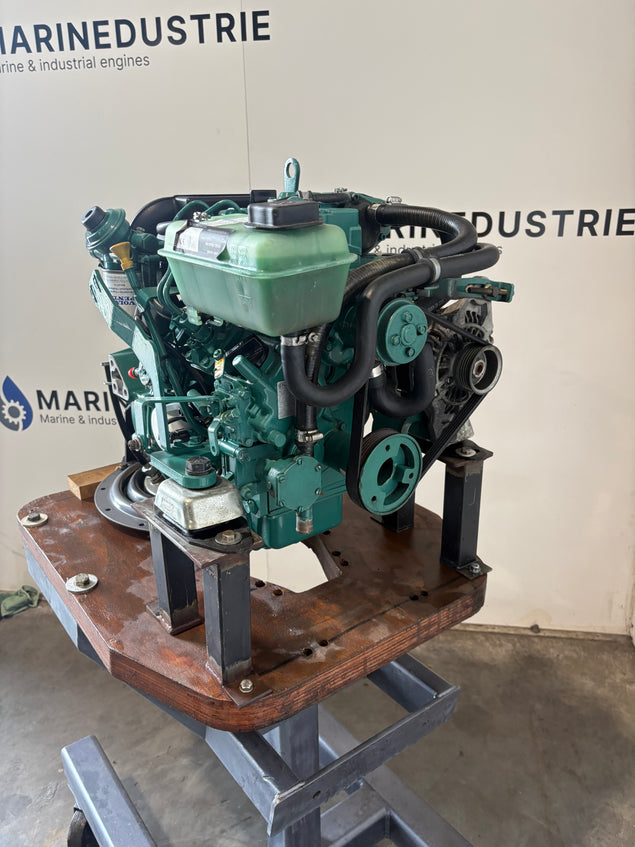

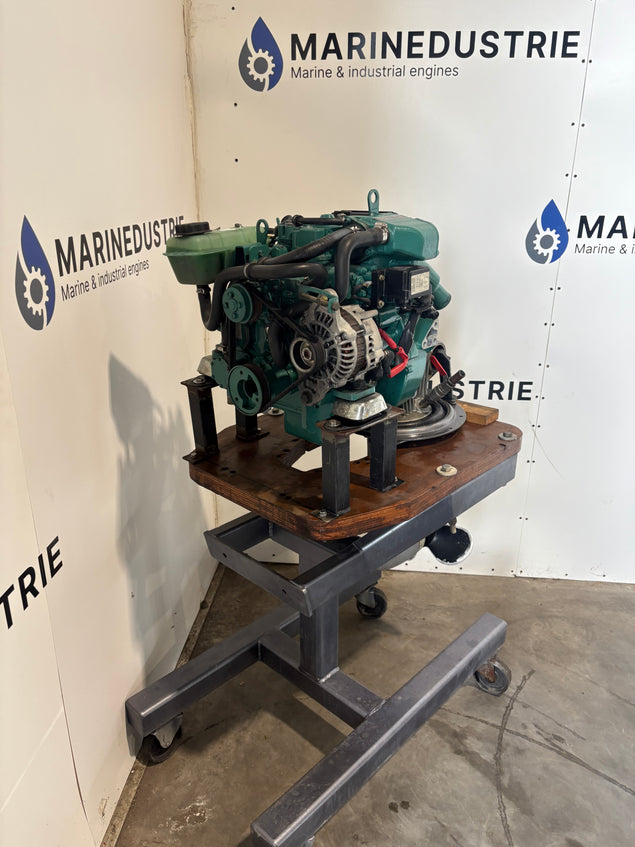

Volvo Penta D1-13 Inboard engine

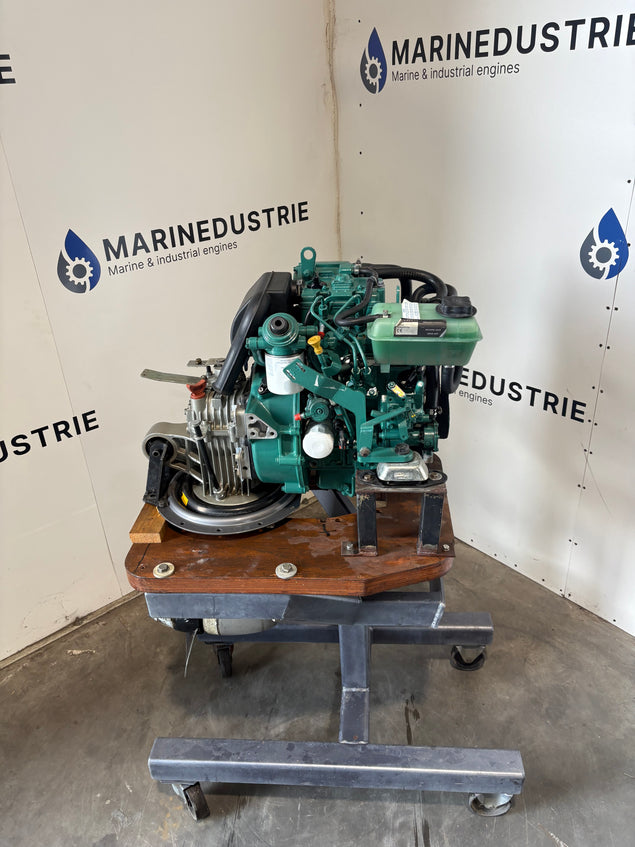

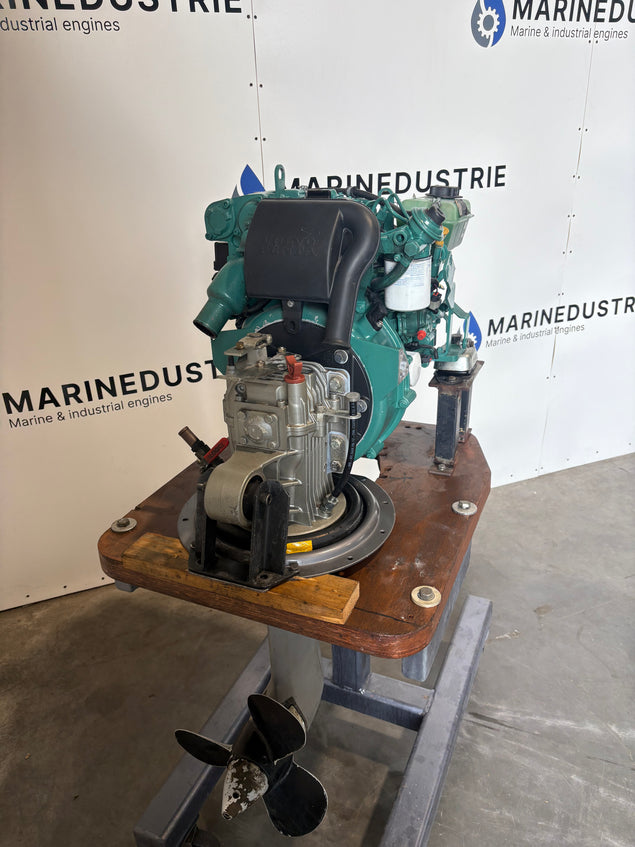

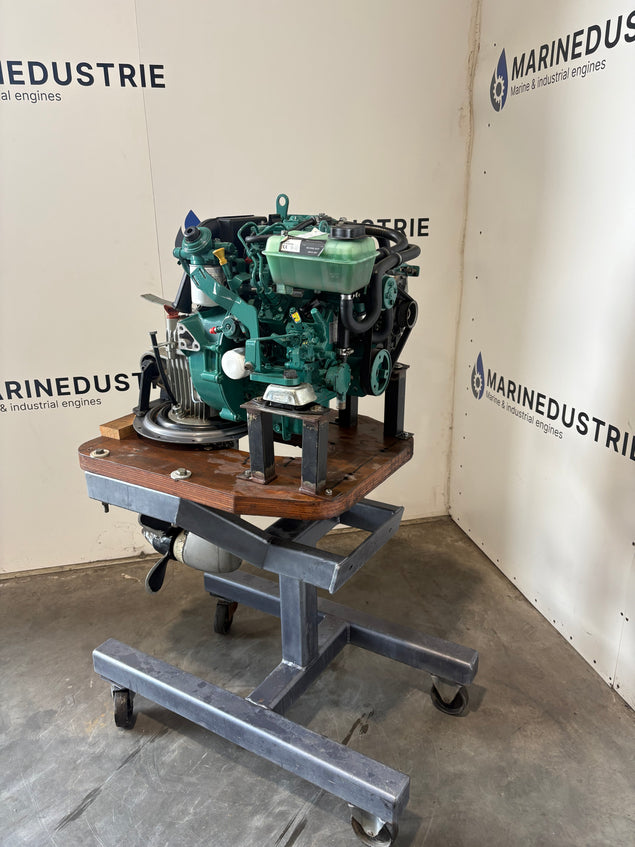

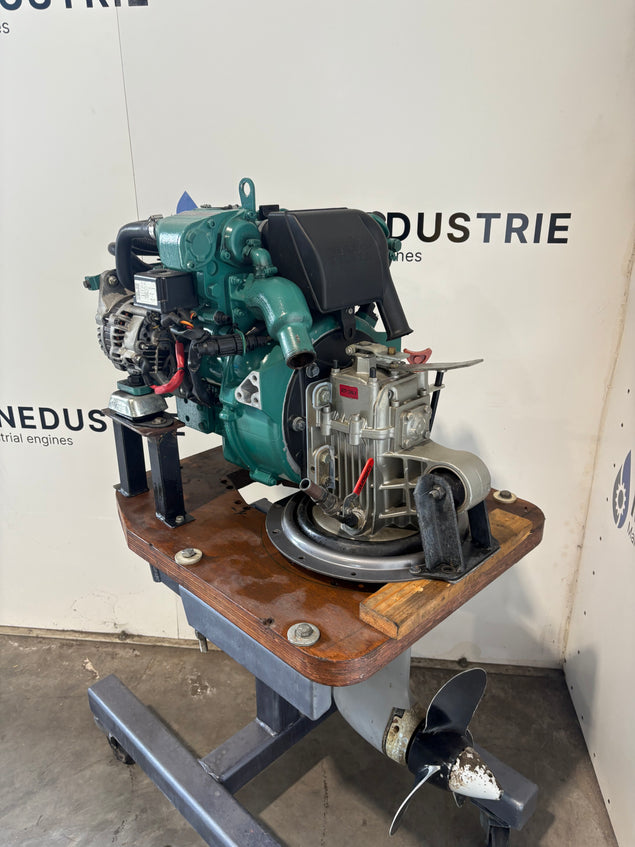

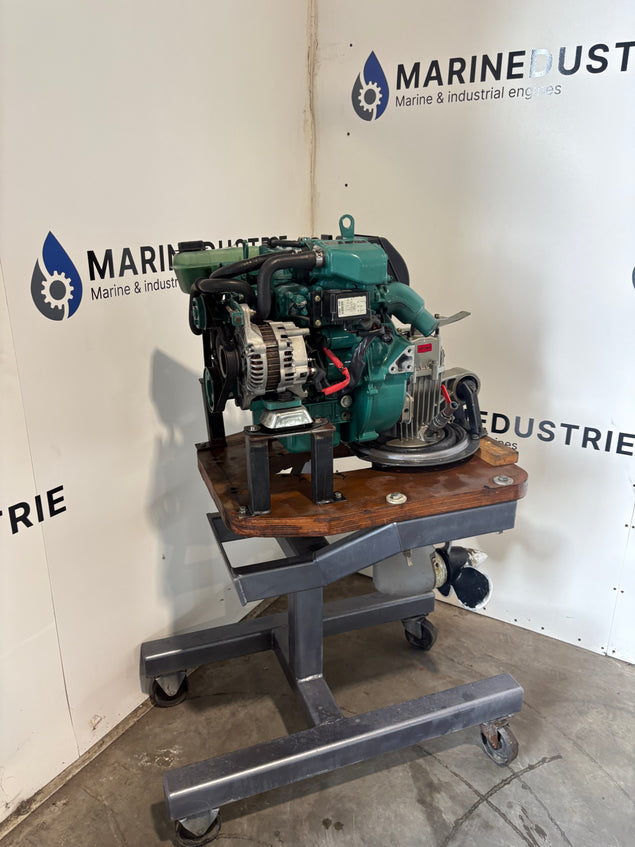

Volvo Penta D1-13 inboard engine

Engine specifications:

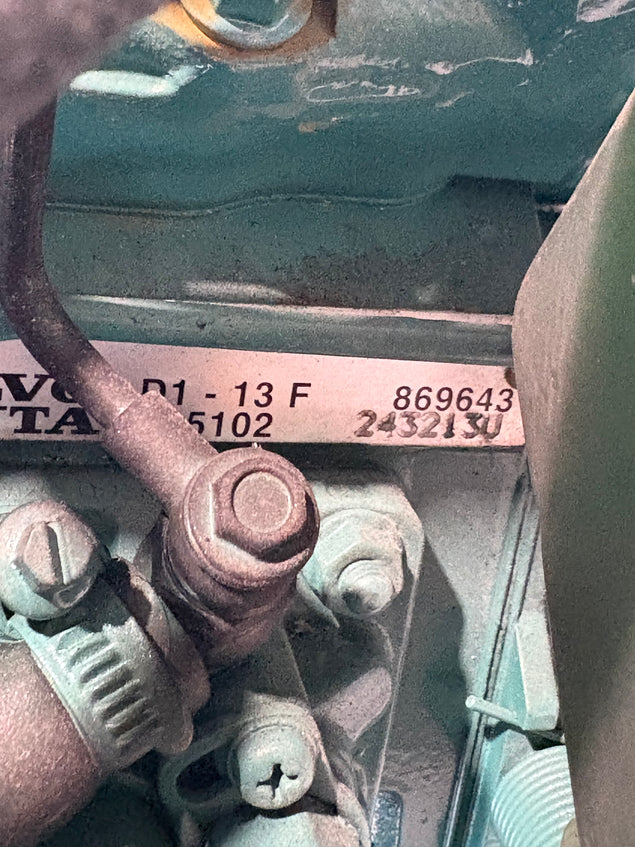

• Engine designation: D1-13

• Crankshaft power kW (hp): 9.0 (12.2)

• Propeller shaft power, kW (hp): 8.6 (11.8)

• Engine speed rpm: 2800–3200

• Cylinder capacity l (in³): 0.51 (31)

• Number of cylinders: 2

• Bore/stroke mm (in.): 67/72 (2.64/2.83)

• Compression ratio: 23.5:1

• Dry weight with MS15A/MS15L reversing gear kg (lb): 111/111 (245/245)

• Dry weight with saildrive 130S kg (lb): 126 (278)

• Emission standard: BSO

Scope of delivery includes:

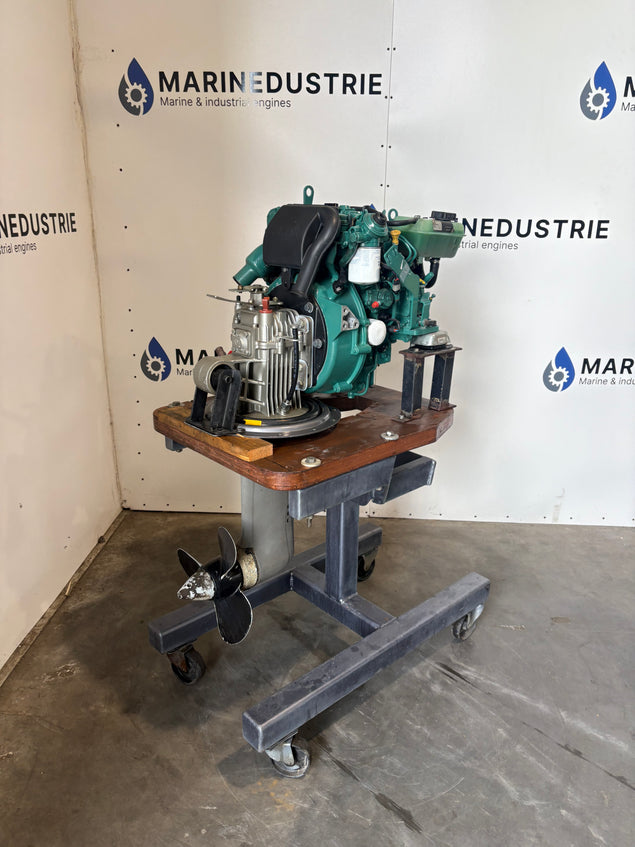

Saildrive version:

• Engine

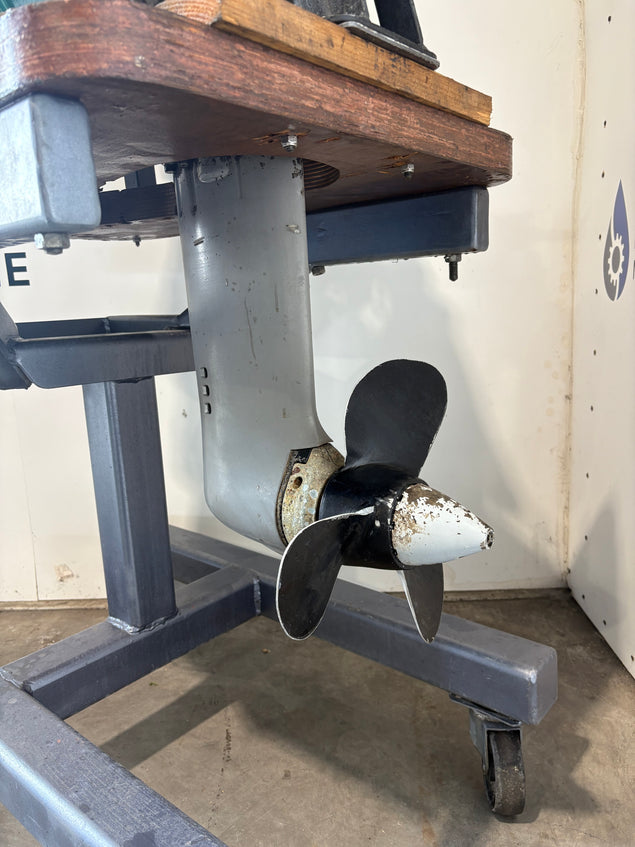

• Saildrive

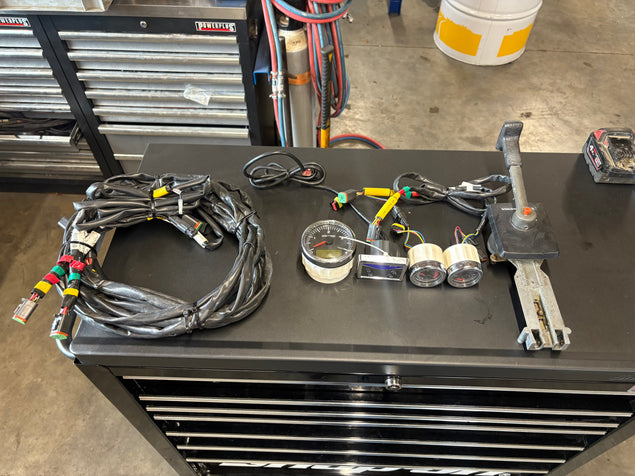

• Tachometer with wiring harness

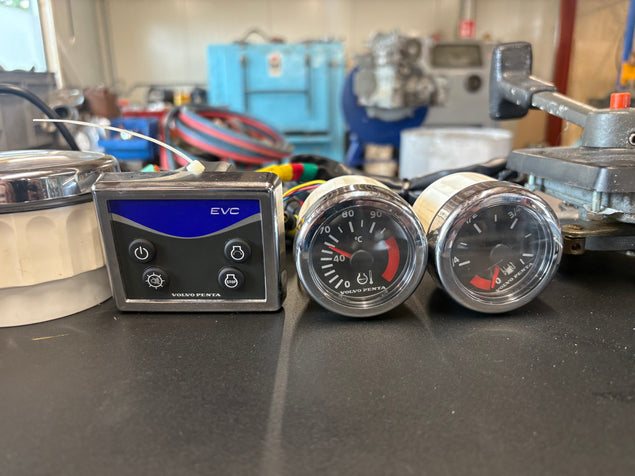

• Control panel
• Vibration dampers
• Polyester foundation (optional)
  (Folding) screw (optional)

Reversing clutch version:

• Engine

• Reversing clutch
• Tachometer with wiring harness
• Control panel
• Vibration dampers
