Volvo Penta MDI Unit (23231607): Everything You Need to Know

Everything you need to know about the Volvo Penta MDI Unit

The Volvo Penta MDI (Motor Data Interface) Unit, part number 23231607, is a crucial component in modern Volvo Penta D1 and D2 engine systems. The MDI unit acts as a bridge between the engine and the various electrical and electronic components. It’s responsible for communication between the engine and control panels, allowing you to monitor key engine data such as fault codes, temperatures, and emergency alarms. Like any electronic part, the MDI unit can fail. In this blog post, we’ll discuss the symptoms of a faulty MDI unit, the various part numbers, and which one to buy as a replacement.

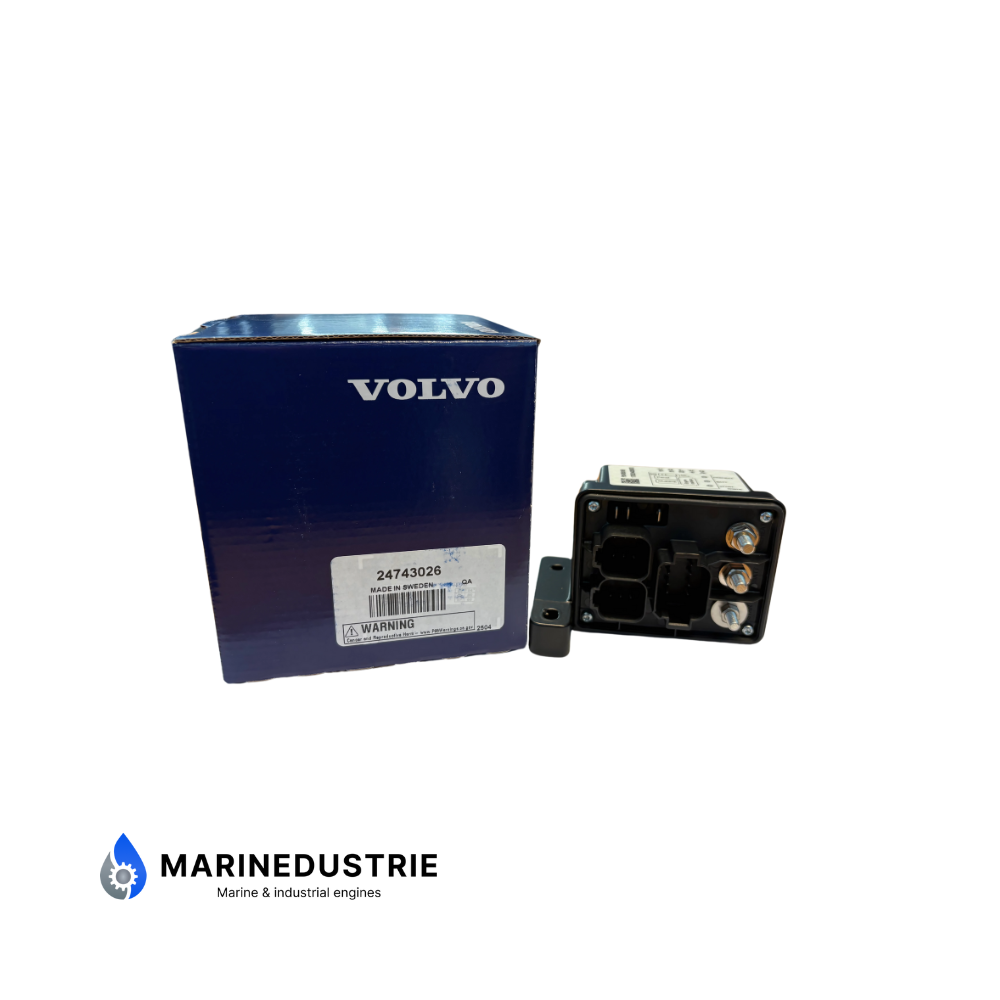

Volvo Penta MDI Electronical Unit 24743026

What is the Volvo Penta MDI Unit?

The MDI unit is an electronic module that processes engine signals and communicates them to your boat’s control and monitoring systems. It receives data from engine sensors and switches and transmits it to control panels and displays. This provides insights into vital engine functions like RPM, oil pressure, engine temperature, and more. The MDI also helps diagnose engine problems by reading error codes.

Symptoms of a Faulty MDI Unit

If the MDI unit starts to fail, you may experience a range of issues, such as:

1. No Response from Start/Stop System
A common problem is that the engine starting system does not respond when you try to start the engine. The MDI is responsible for transmitting the start signal, a defective MDI can also cause the engine to not want to stop.
2. Warning or Fault Messages on the Panel
Another common symptom is that you are receiving incorrect or no information from the control panel. This can range from false error messages to no engine data being displayed on the panel at all.
3. Irregular Engine Performance
If the engine suddenly begins to perform erratically with no apparent mechanical cause, the MDI unit is not communicating properly with the engine's sensors and systems. This can cause the engine to stop unexpectedly, be difficult to start, or run erratically.
4. EVC Display Error Codes
Many engines equipped with an Electronic Vessel Control (EVC) system may display error codes indicating a communication problem between the MDI and the EVC system. This could be a sign that the MDI unit is not functioning properly.
5. Loss of Electronic Functions
Electronic components that are normally controlled by the MDI, such as the fuel pump, can stop working if the MDI is defective. This can result in a total engine failure.
Do you think that your MDI unit is broken after reading the errors above? Then order a new one from stock here.

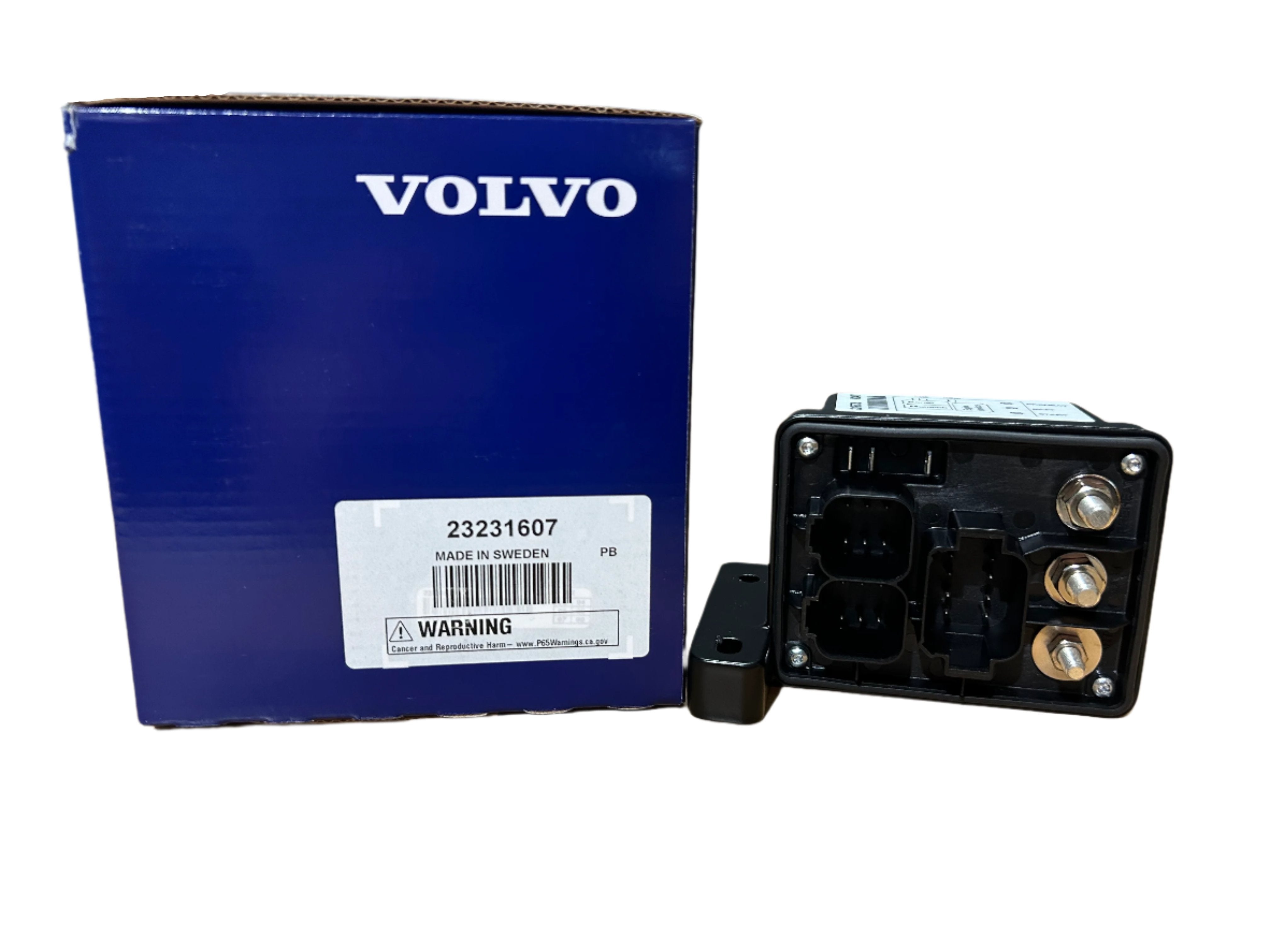

Volvo Penta MDI Electronical Unit 23231607

Part Numbers: MDI Variants and Replacements

Although part number 23231607 is the most commonly used and most recent number for the Volvo Penta MDI unit, there are a few other relevant part numbers you should be aware of. These may vary depending on your engine model or the specifications of your vessel.

However, these older numbers are still often in circulation — do not buy them! They come with many issues and have a high risk of failure within a short period of time!

Here are the key Volvo Penta MDI part numbers:

This is the standard part number for the MDI unit. It is used in many of the popular Volvo Penta D-series engines, such as the Volvo Penta D1 and D2 series.
An alternative version of the MDI unit, compatible with other Volvo Penta engine series.
An older version of the MDI unit, still in circulation but often replaced by newer models like 23231607.

It is important to check which part number is compatible with your specific engine. However, the most common replacement is part number 23231607, which in most cases is suitable for a wide range of Volvo Penta engines.

Not sure which one you need? Feel free to contact us!

Which MDI Unit Should You Buy?

If your MDI unit is defective and you need to purchase a replacement part, it is important to choose the correct part based on your engine and model. In most cases, 23231607 is the recommended part. This part is designed to be compatible with a wide range of Volvo Penta engines and systems, and is usually the best choice for replacement. It is also the most recent and advanced design.

What to Consider When Buying:
Compatibility:
Always check compatibility with your engine (consult manual or dealer).
Original Parts:
Buy genuine Volvo Penta parts to avoid installation or performance issues.
Order the most common MDI unit for all modern D1 and D2 engines here.
Installing the MDI Unit
Replacing the unit is not overly complex, but proper care is important:
1. Turn Off Engine: Make sure the system is off, and disconnect battery terminals if needed.
2. Remove Old Unit: Carefully disconnect the old unit.
3. Install New Unit: Plug in the new one the same way.
4. Test Engine: Restart and check all functions and error messages.
Conclusion
The MDI unit is essential for proper engine function. If it fails, your engine may behave unpredictably. 23231607 is the most common replacement. Always check compatibility and follow correct installation steps for best results.
Think you need a new MDI unit after reading this and feel confident to replace it yourself? Click here to order from our webshop.
Order Volvo Penta Unit 23231607
