Volvo Penta D1-13 Inboard engine

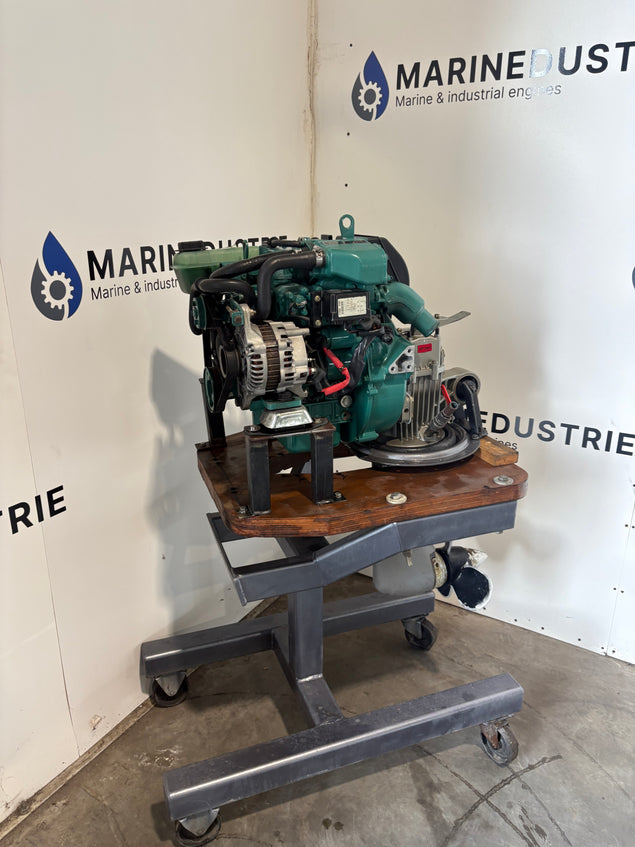

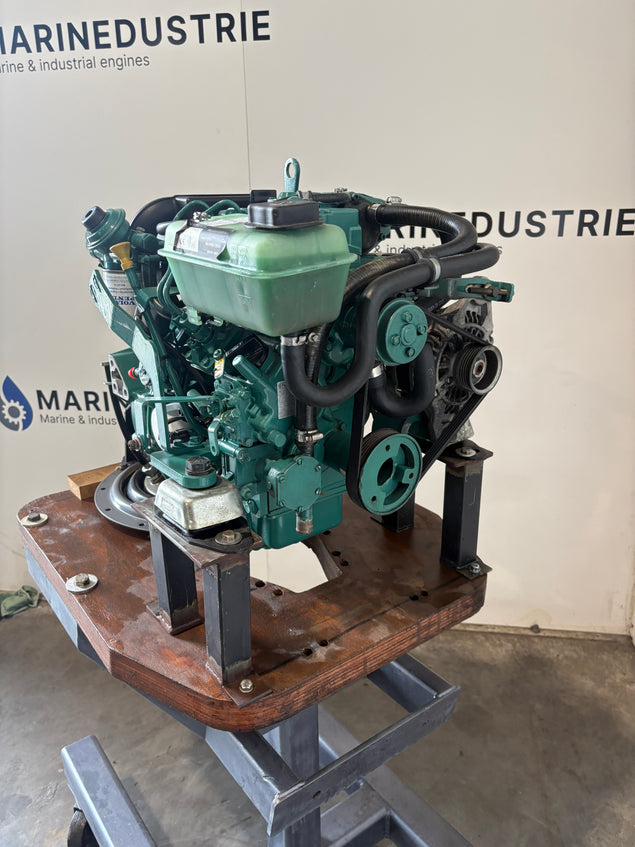

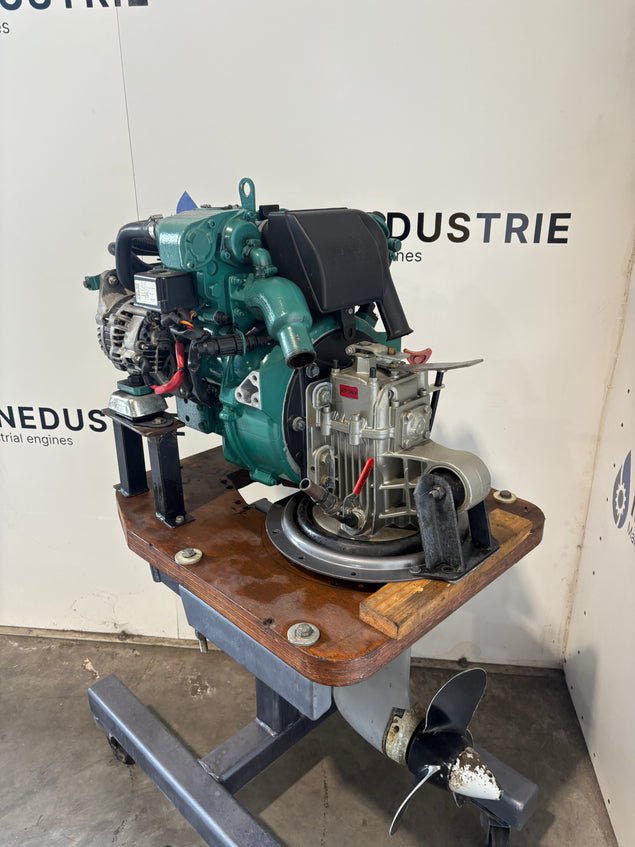

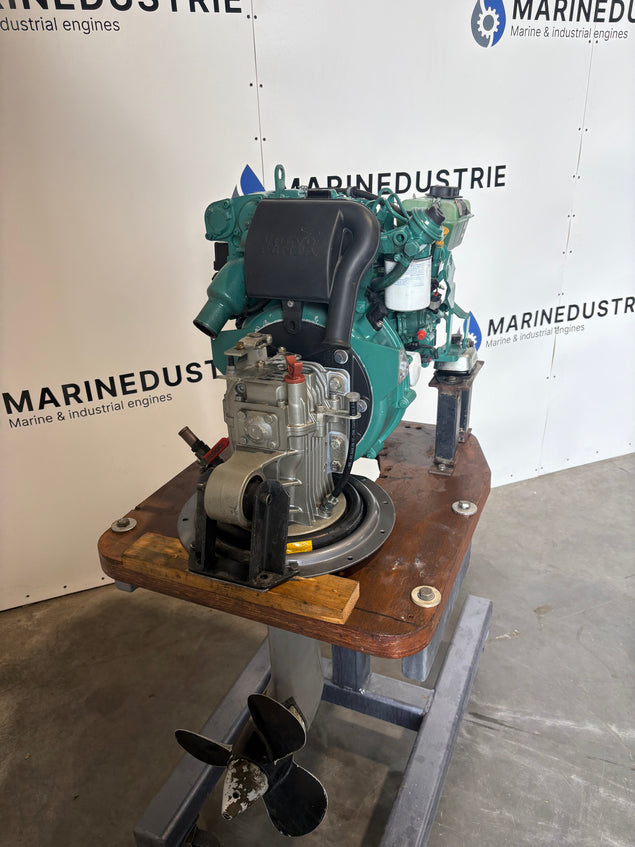

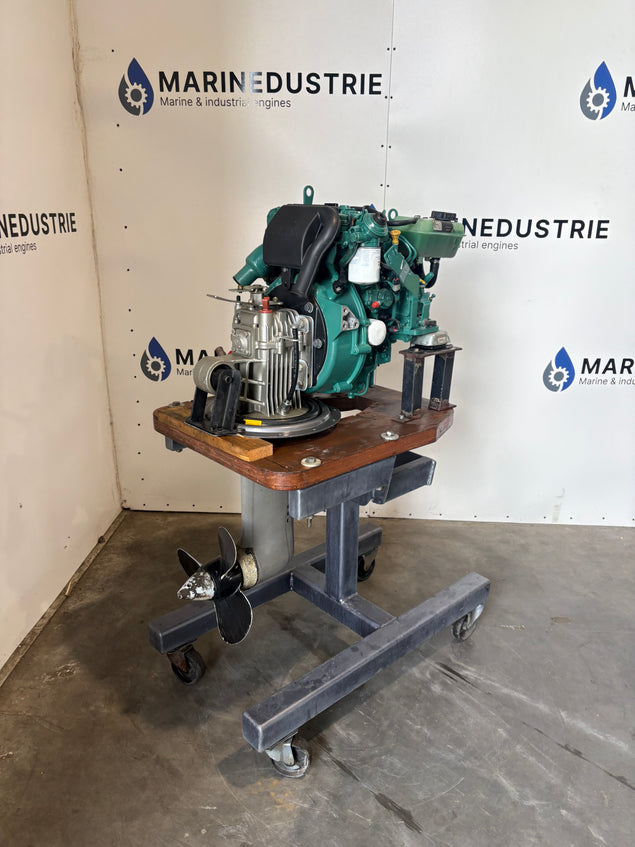

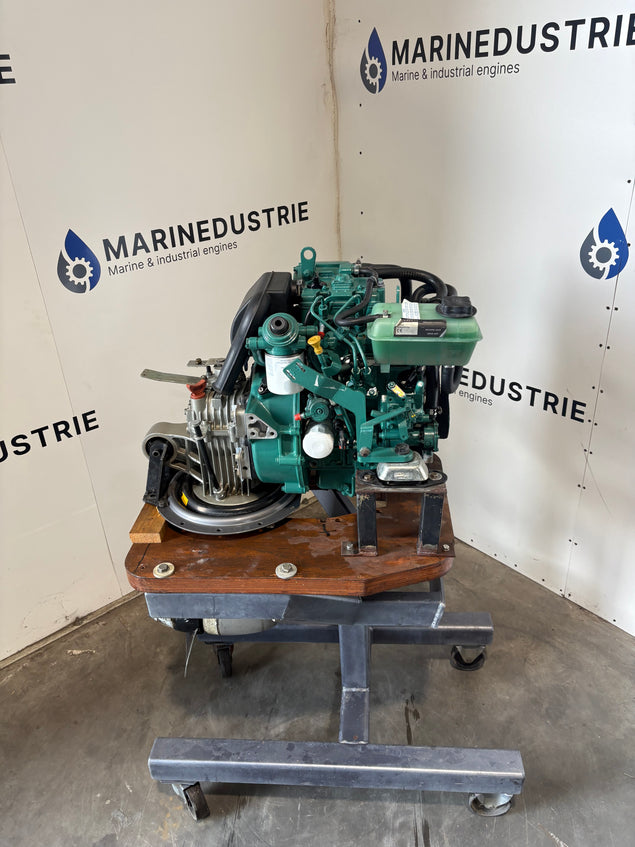

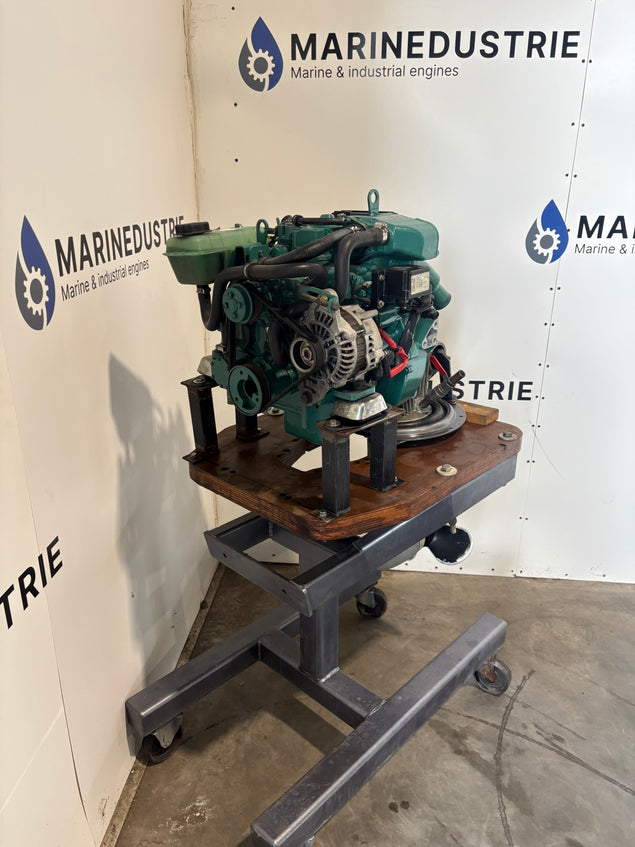

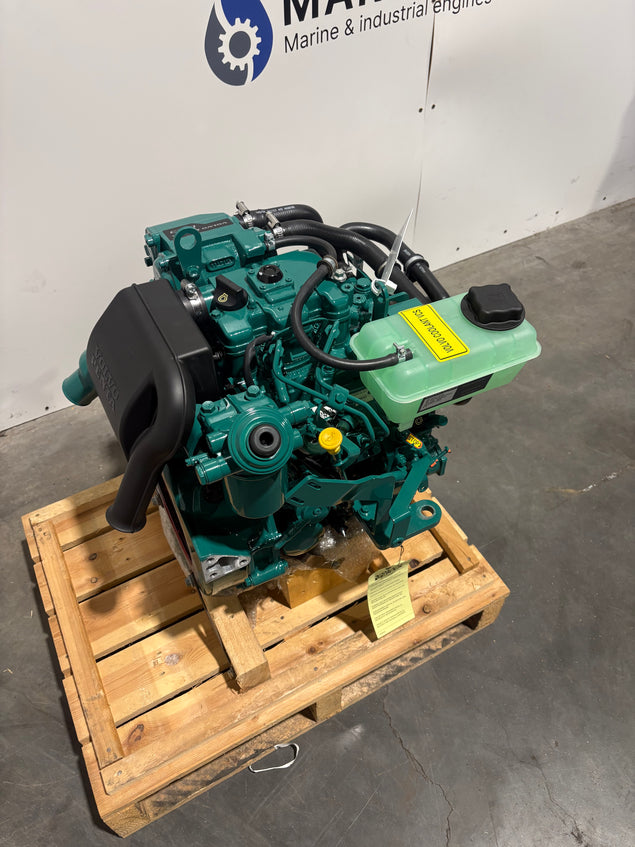

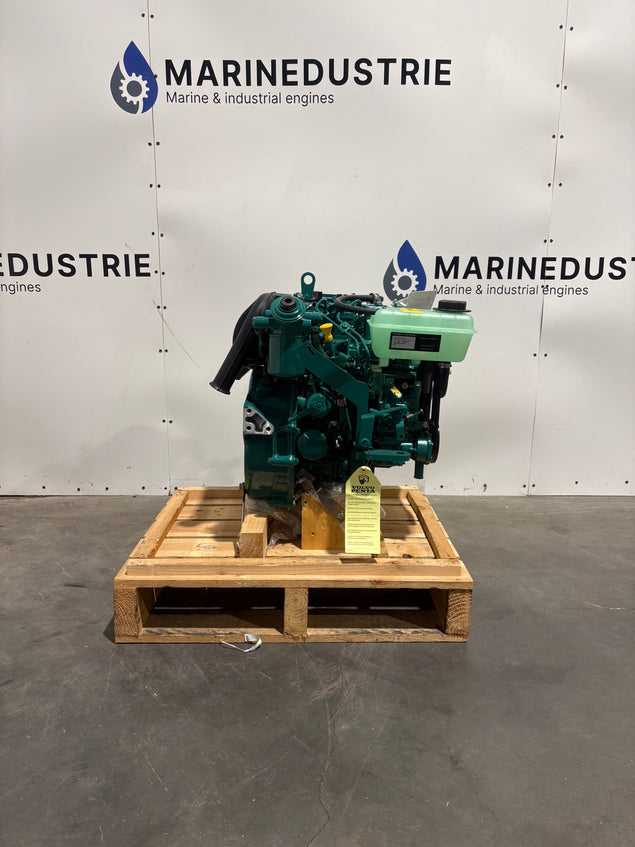

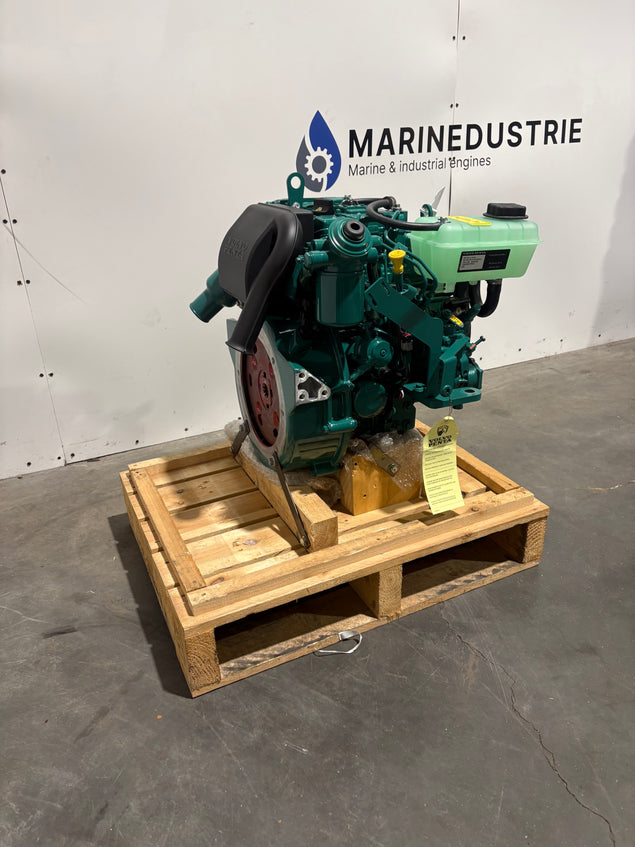

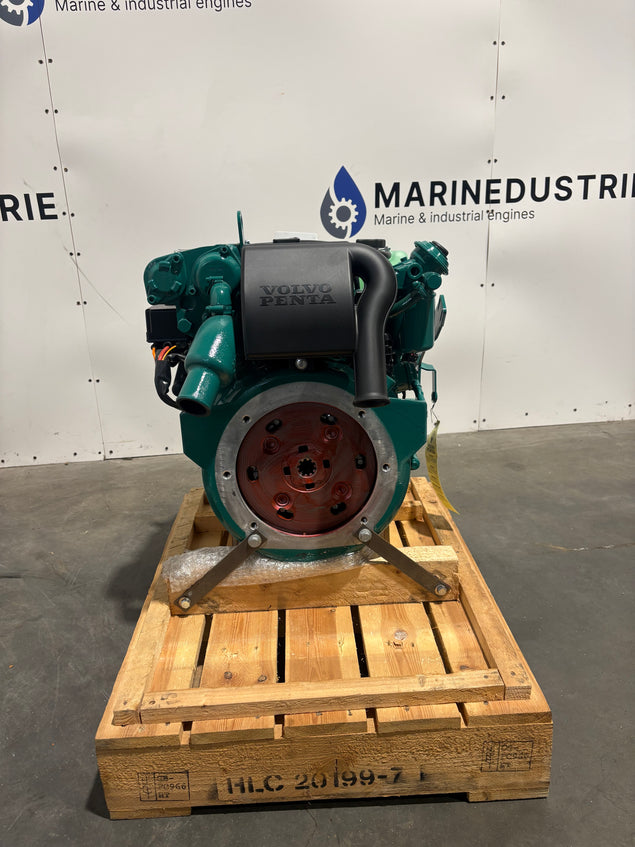

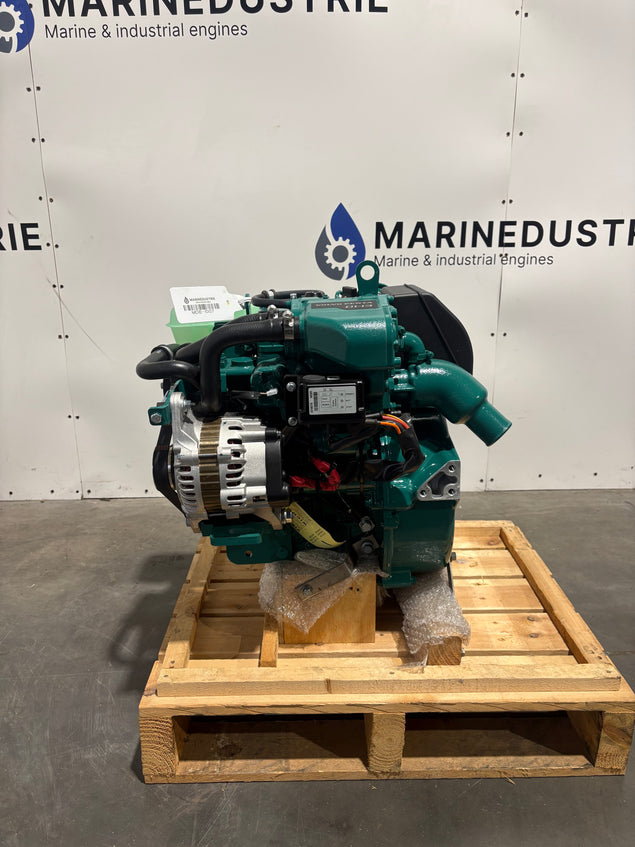

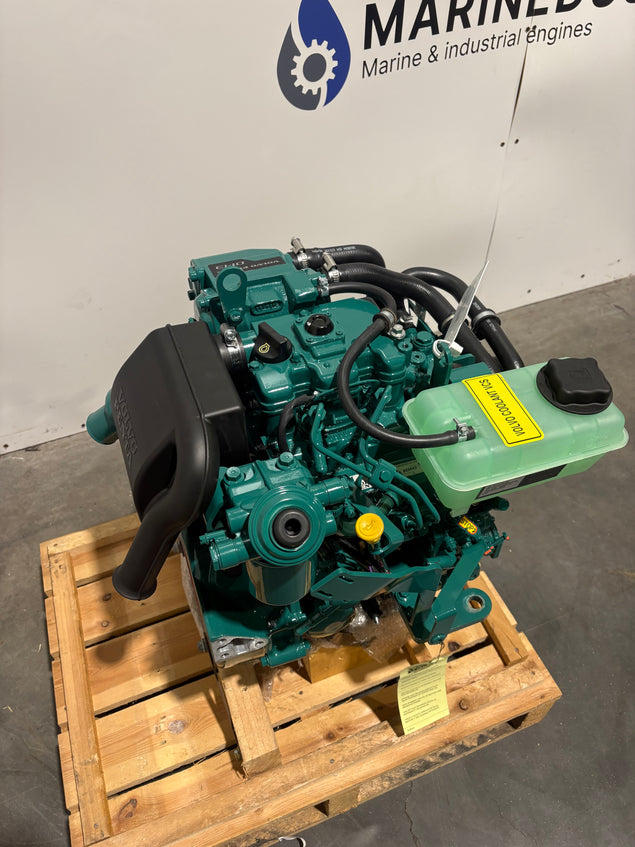

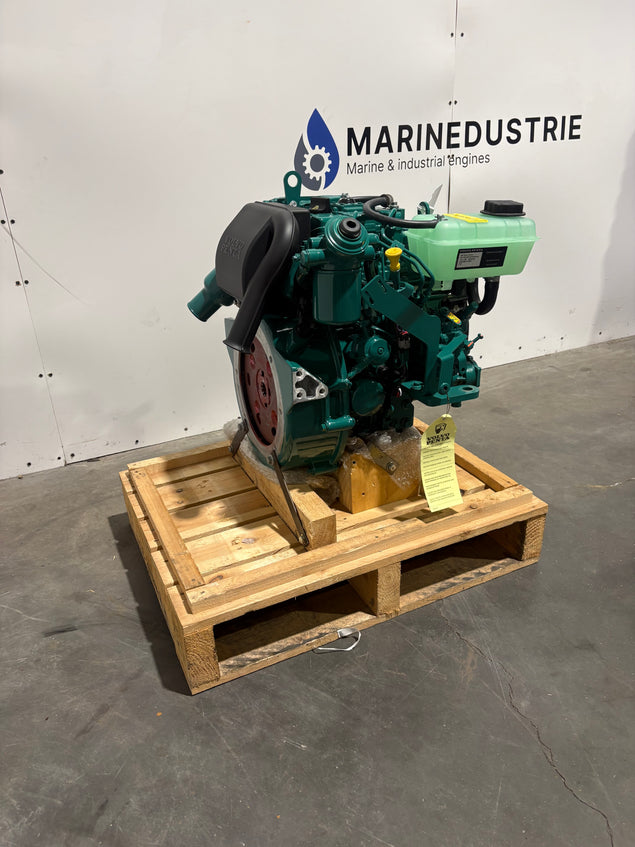

Volvo Penta D1-13F inboard engine

Engine specifications:

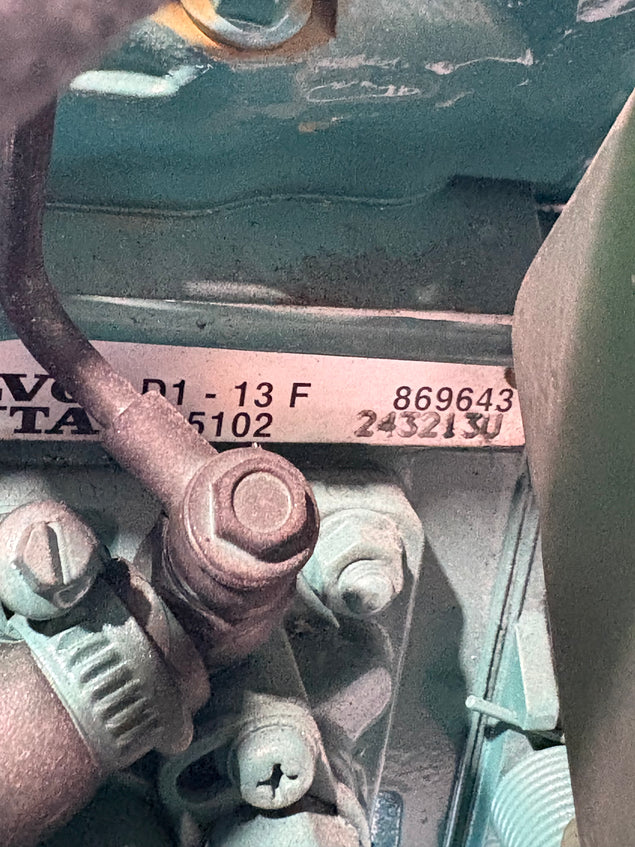

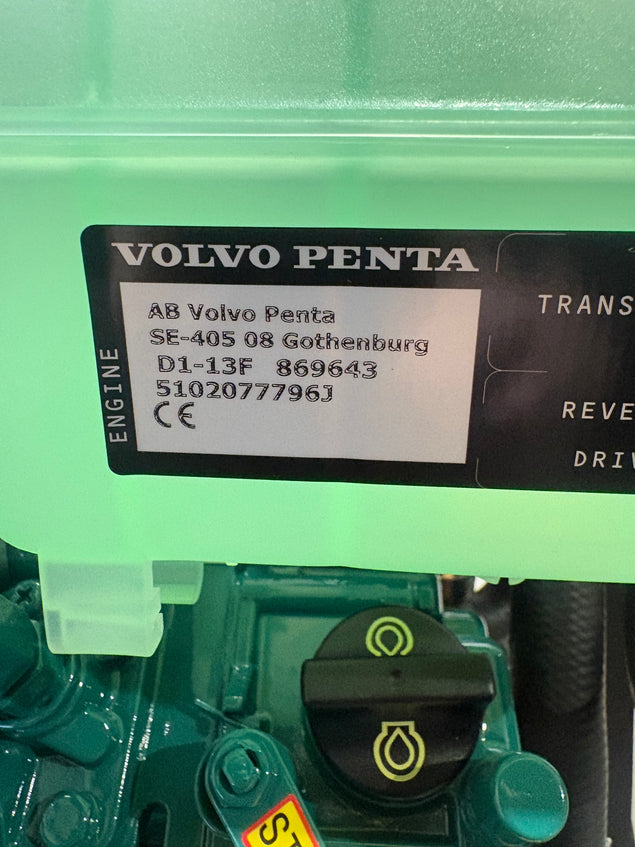

• Engine designation: D1-13F

• Hours: 220 hours
• Crankshaft power kW (hp): 9.0 (12.2)

• Propeller shaft power, kW (hp): 8.6 (11.8)

• Engine speed rpm: 2800–3200

• Cylinder capacity l (in³): 0.51 (31)

• Number of cylinders: 2

• Bore/stroke mm (in.): 67/72 (2.64/2.83)

• Compression ratio: 23.5:1
• Dry weight with saildrive 130S kg (lb): 126 (278)

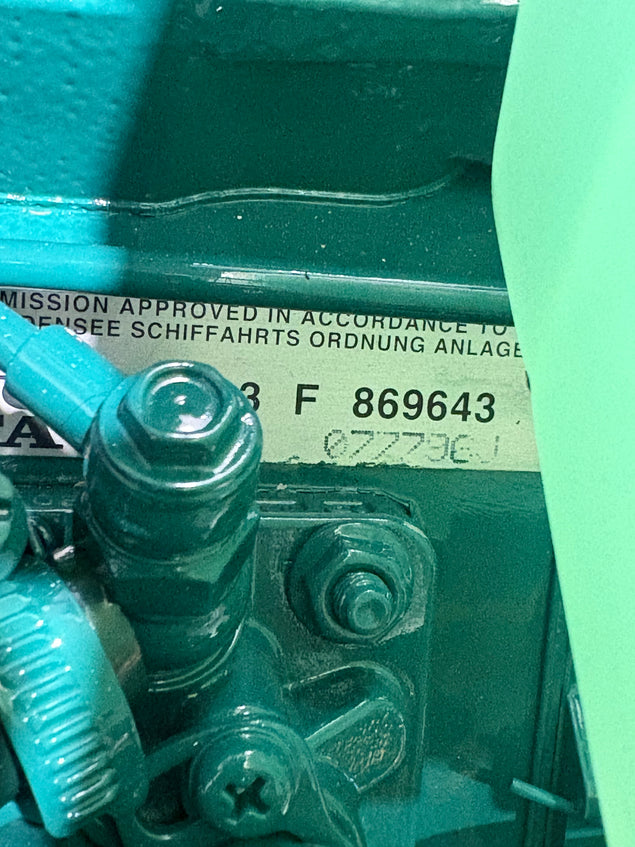

• Emission standard: BSO

Download PDF

Scope of delivery includes:

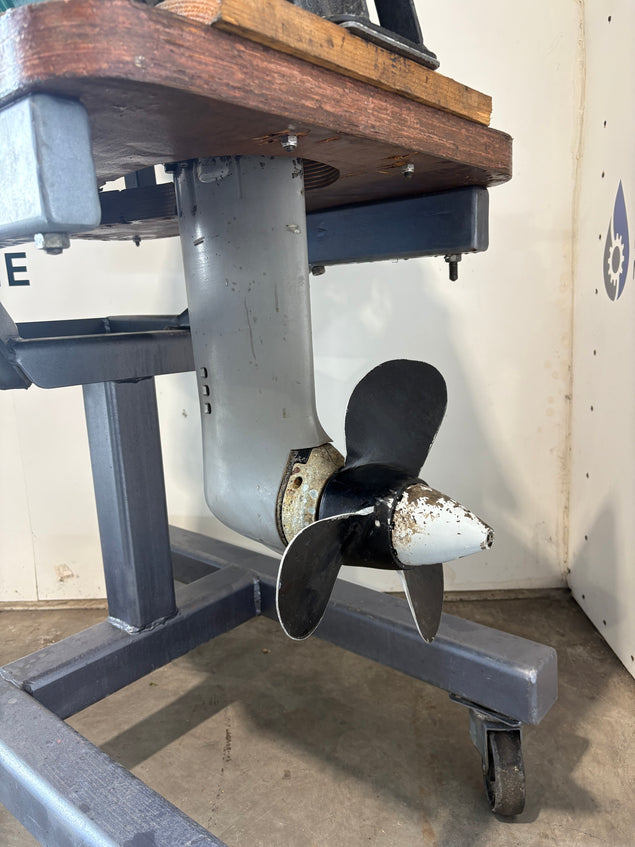

Saildrive version:

• Engine
• Saildrive

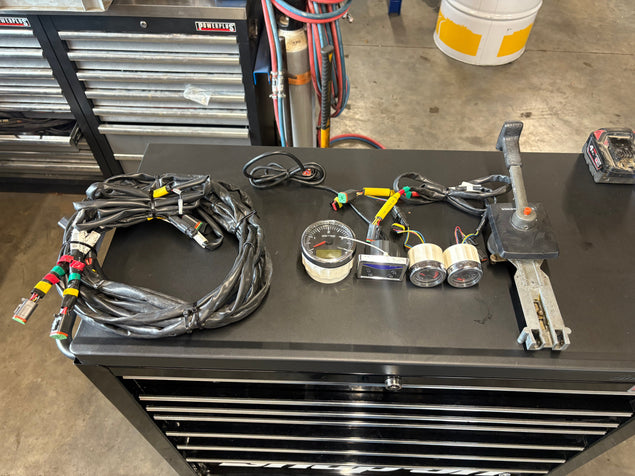

• Tachometer with wiring harness

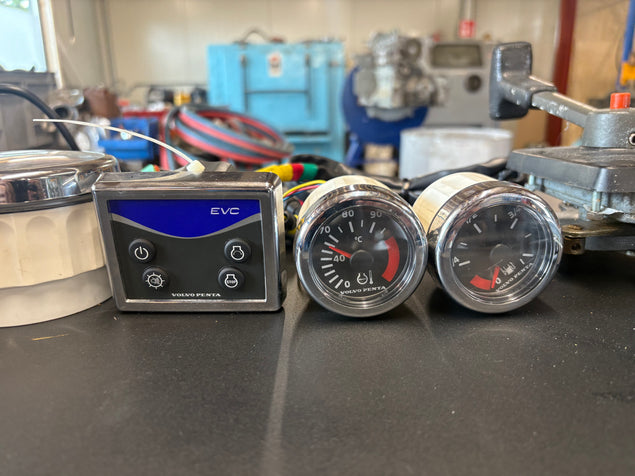

• Volvo Penta temperature gauge
• Volvo Penta diesel tank gauge
• Control panel
• Vibration dampers
• Fixed propeller
