How do you replace Yanmar gearbox oil?

Regularly changing the oil in your Yanmar gearbox is essential to prevent wear and maintain optimum performance. In this manual you will learn step by step how to do this yourself, which tools you need and which oil is suitable.

Multiple columns

  • Column

    Replacing the oil in your Yanmar gearbox is essential for a smoothly running system and for preventing wear. This maintenance task is easy to perform yourself with the right preparation. In this blog post, we discuss step by step how to do this, including a list of necessary tools and materials.

  • Why is it important to replace the oil?

    The oil in a gearbox provides lubrication and prevents wear of internal components. Over time, the oil loses its lubricating quality due to contamination and oxidation. By replacing the oil regularly, you extend the lifespan of your gearbox and prevent costly repairs.
Button label

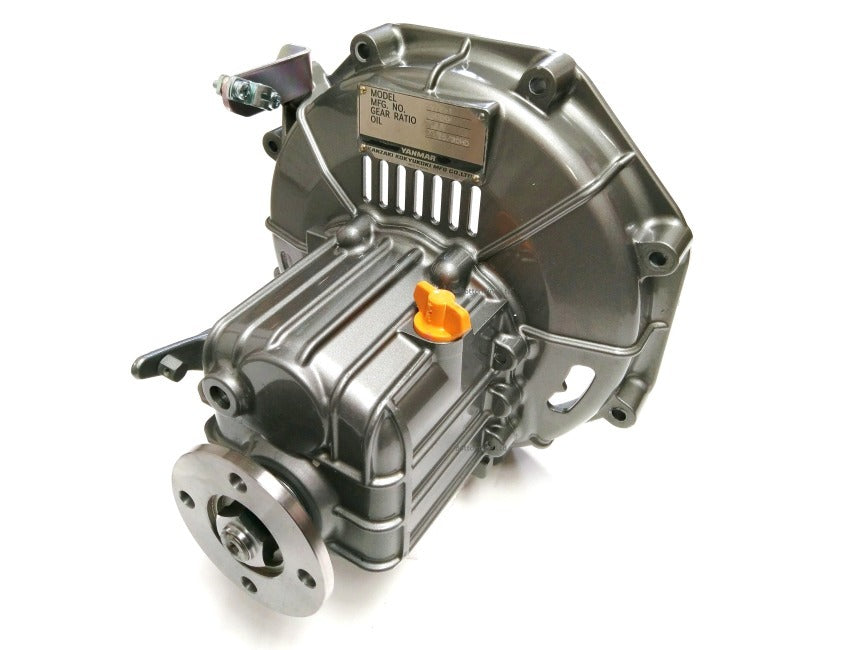

Yanmar Keerkoppeling Olie vervangen uitleg

Supplies

Before you get started, make sure you have the following items at hand:

Tools:

  • Oil pump (vacuum pump)
  • Funnel with a narrow spout
  • Bucket or collection tray (for old oil)
  • Cleaning cloths
  • Latex or nitrile gloves

Materials:

  • Yanmar SAE30 oil (or the oil recommended by Yanmar for your gearbox)
  • New sealing ring (optional, depending on the gearbox)

Step-by-step plan: Replacing Oil in a Yanmar Gearbox

  • 1. Prepare your workspace

    • Make sure the engine is turned off and cooled down.
    • Place a bucket or collection tray next to the engine compartment to collect the old oil via the pump.
    • Put on gloves to protect your hands from oil.

  • 2. Locate the dipstick

    • Open the engine compartment and locate the dipstick of the gearbox. This serves as the access point for removing the oil.
    • Check your gearbox manual for the exact location.

  • 3. Remove the old oil with a vacuum pump

    • Insert the hose of the vacuum pump through the dipstick opening into the gearbox.
    • Make sure the hose is deep enough to reach all the oil.
    • Use the pump to suck the old oil out of the gearbox. This is the most efficient method, especially in tight spaces like a boat’s engine room.

  • 4. Inspect and clean

    • Check the old oil for metal particles or foreign substances, which may indicate wear.
    • Clean the dipstick and other surfaces around the gearbox with a cloth.

  • 5. Fill with new oil

    • Use a funnel to pour the new Yanmar SAE30 oil into the gearbox via the dipstick opening.
    • Fill the oil slowly to avoid spilling.
    • Check the oil level with the dipstick and ensure it is at the recommended level.

  • 6. Check for leaks

    Check around the dipstick and any other connections for oil leaks.

  • 7. Test the gearbox

    • Start the engine and shift the gearbox several times into forward and reverse.
    • After testing, check the oil level again and top off if necessary.

  • Maintenance tips

    • Check the oil level regularly, especially after long trips or intensive use.
    • Replace the oil as recommended in your gearbox manual (usually every 100-150 operating hours)
Button label

Yanmar SAE30 1L Keerkoppeling olie

Yanmar SAE30 1L Gearbox oil

$17.00 USD
$17.00 USD
In stock
Olie vacuum pomp 7L handmatige vloeistofpomp

Oil vacuum pump 7L manual fluid pump

$96.00 USD
$96.00 USD
In stock
Marinedustrie Trechterset 4-Delig 50 75 100 120 mm

Funnel set 4-piece 50 75 100 120 mm

$6.00 USD
$6.00 USD
In stock
Olie vacuum pomp 9L handmatige olie carter pomp

Oil vacuum pump 9L manual oil sump pump

$108.00 USD
$108.00 USD
In stock

Yanmar

Frequently Asked Questions

Which oil should I use?

For most Yanmar gearboxes, SAE30 oil is recommended. Check your manual to be sure.

How do I know when the oil needs replacing?

Replace the oil if it becomes darker or has a burnt smell. Regular inspection helps determine this.

With this step-by-step plan, you can easily and effectively replace the oil in your Yanmar gearbox. Do you have questions or want to order oil or tools? Contact us or check out our range of Yanmar parts!
