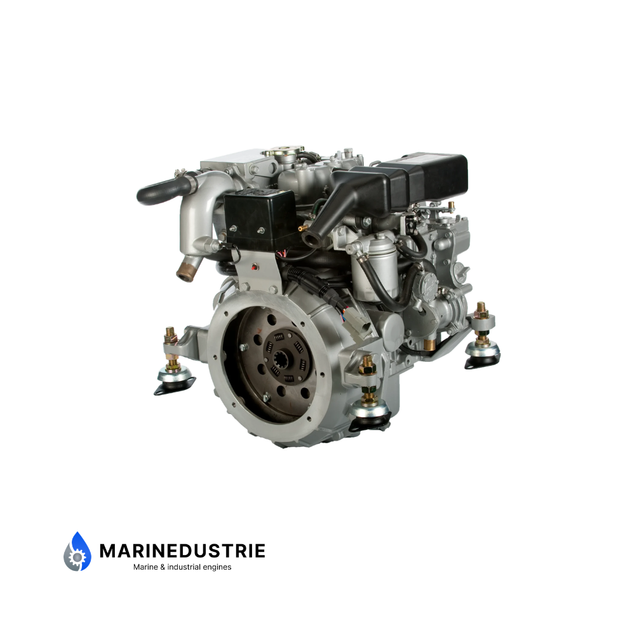

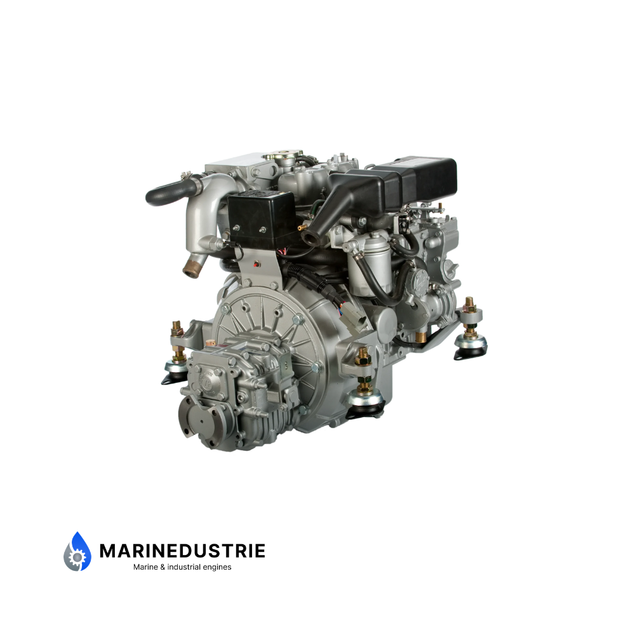

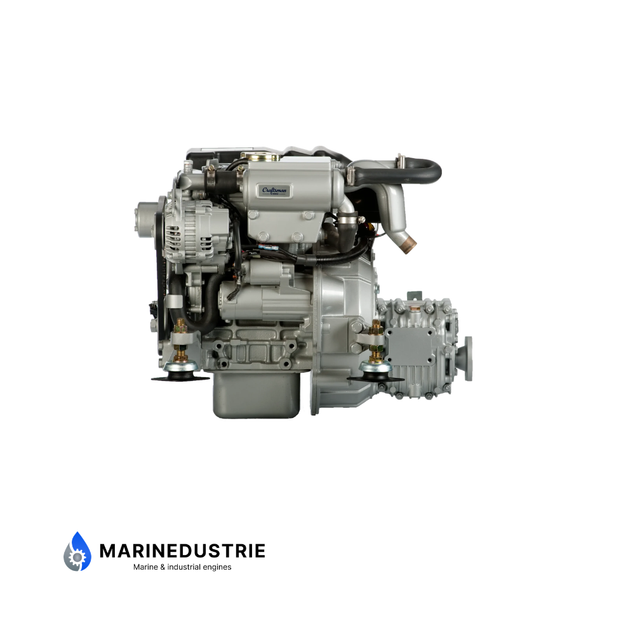

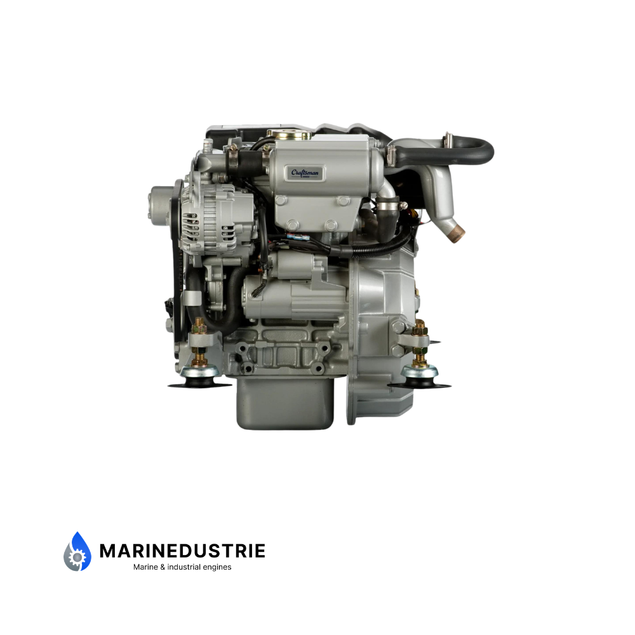

Craftsman CM2.16 16HP Marine Engine - 16HP

The Craftsman Marine CM2.16 is a compact and reliable 16 hp marine diesel engine, ideal for smaller sailboats, sloops, and light motorboats. Thanks to its low weight, compact dimensions, and simple technology, this engine is very suitable as a replacement for older Volvo Penta, Yanmar, Vetus, Bukh, or Solé engines in the same power class.

This 2-cylinder Craftsman Marine engine is based on a proven Mitsubishi industrial engine and has been marinized for long-term use on board. The engine features indirect cooling with a heat exchanger, a seawater-resistant exhaust elbow, and a powerful 70A alternator.

The CM2.16 is an interesting choice for boat owners looking for a new, reliable, and affordable marine engine without unnecessary electronics.

Main advantages

• Compact 2-cylinder diesel engine

• 16 hp output

• Based on Mitsubishi industrial engine

• Indirect cooling with heat exchanger

• Lightweight: only 90 kg

• Ideal for repowering

• Available with gearbox, dashboard, wiring harness, and engine mounts

• Up to 6 years warranty according to Craftsman Marine conditions

Technical specifications

• Model: Craftsman Marine CM2.16

• Power: 11.8 kW / 16 hp

• Cylinders: 2 in-line

• Displacement: 635 cm³

• Base engine: Mitsubishi

• Max. RPM: 3,600 rpm

• Max. torque: 36 Nm

• Cooling system: Indirect with heat exchanger

• Alternator: 70 A / 12 V

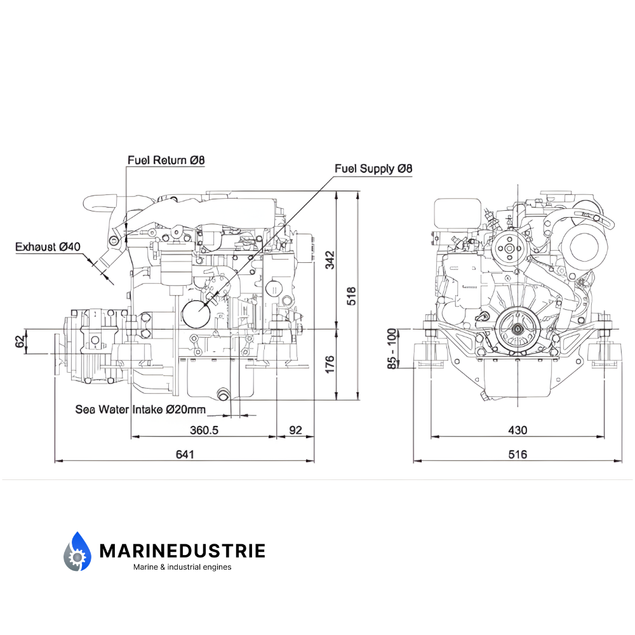

• Exhaust diameter: Ø40 mm

• Weight: 90 kg

• Max. installation angle: 15° aft

Standard delivery scope

• Craftsman Marine CM2.16 engine

• TMC40 gearbox, ratio depending on application

• Control panel - Alfa 20E

• Wiring harness between engine and dashboard (2 meters)

• Flexible engine mounts

• Manual and warranty booklet


Suitable as a replacement for

This engine is often an interesting replacement for older compact marine engines of approximately 10–18 hp, such as small Volvo Penta, Yanmar, Vetus, Bukh, and Solé engines.

Interested in the Craftsman Marine CM2.16?
Please contact MarineDustrie for a quote, availability, and advice on the correct gearbox and installation.
